For our "Circle" control, we will add an event called "ClickIn". This event will be fired from the control whenever an user clicks inside its circular area.

To do this, we will invoke the "Add Event to C++ Control" dialog by clicking the right mouse button on the control toolbutton (in the RadVC toolbox) and then selecting "Add Event" context menu item:




"ClickIn" Event
Circle.h Circle.cpp

struct    msgClickIn
{
    short    nX;
    short    nY;
};
class CCircle : public CWnd
{
    ...
    //Events
    //{{AFX_CTRL_EVENT_DEF_START
    long FireClickIn(short nX, short nY);
    //}}AFX_CTRL_EVENT_DEF_END
    ...
public:
    enum eCircleEvents
    {
        ClickIn = 1L,
    };
};

long CCircle::FireClickIn(short nX, short nY)
{
    msgClickIn msg;
    msg.nX = nX;
    msg.nY = nY;
    return FireCppEvent(ClickIn, (LPARAM)&msg);
}
If we decided our "ClickIn" event only to have one parameter (short nX) instead of two, then the event code would look a lot simpler as follows:
class CCircle : public CWnd
{
    ...
    //Events
    //{{AFX_CTRL_EVENT_DEF_START
    long FireClickIn(short nX);
    //}}AFX_CTRL_EVENT_DEF_END
    ...
public:
    enum eCircleEvents
    {
        ClickIn = 1L,
    };
};
long CCircle::FireClickIn(short nX)
{
    return FireCppEvent(ClickIn, (LPARAM)nX);
}
The event code would have gotten even simpler if we decided not to have any parameters at all..
class CCircle : public CWnd
{
    ...
    //Events
    //{{AFX_CTRL_EVENT_DEF_START
    long FireClickIn();
    //}}AFX_CTRL_EVENT_DEF_END
    ...
public:
    enum eCircleEvents
    {
        ClickIn = 1L,
    };
};
long CCircle::FireClickIn()
{
    return FireCppEvent(ClickIn, 0);
}



Firing Event:

"ClickIn" event will be fired from our control whenever the user clicks inside the circle boundary. Thus to fire this event from the control, we need to respond to Windows WM_LBUTTONDOWN message on the control and call "FireClickIn(..)" function.

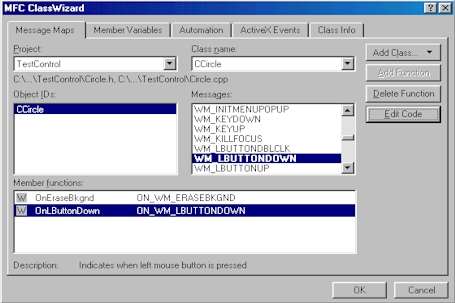

To add a WM_LBUTTONDOWN message handler for the control, we need to invoke the Class Wizard by simply pressing CTRL+W or selecting "Class Wizard" menu item from the Developer Studio's "View" menu. This will display the "MFC ClassWizard" dialog box as shown below:


In this dialog box,

(1) Select "CCircle" in the class name combo box.
(2) Select "WM_LBUTTONDOWN" in the listbox called "Messages".
(3) Click on the "Add Function" button. This will add a new item in the listbox called "Member Functions for the message handler "OnLButtonDown".
(4) Click "OK" to finish adding the message handler.

The "ClassWizard" will now open the implementation source file for the control called "Circle.cpp" and highlights the handler function body:

void CCircle::OnLButtonDown(UINT nFlags, CPoint point)
{
    // TODO: Add your message handler code here and/or call default
    CWnd::OnLButtonDown(nFlags, point);
}

Add the following code to fire the "ClickIn" event from the "WM_LBUTTONDOWN" message handler.

void CCircle::OnLButtonDown(UINT nFlags, CPoint point)
{
    if(InCircle(point))
        FireClickIn((short)point.x, (short)point.y);
    CWnd::OnLButtonDown(nFlags, point);
}

For this example the event is to be fired only when the click occurs inside a circular or elliptical region within the control. To determine this we have used a helper function called "InCircle":



Circle.h Circle.cpp
class CCircle : public CWnd
{

..

BOOL InCircle(CPoint point);

..

..

};

BOOL CCircle::InCircle(CPoint point)
{
    CRect rect;
    GetClientRect(rect);

    // Determine radii
    double a = (rect.right - rect.left) / 2;
    double b = (rect.bottom - rect.top) / 2;

    // Determine x, y
    double x = point.x - (rect.left + rect.right) / 2;
    double y = point.y - (rect.top + rect.bottom) / 2;

    // Apply ellipse formula
    return (((x * x) / (a * a) + (y * y) / (b * b)) <= 1);
}



You need to add the following declaration of the "Incircle" function to your control's .H file.

Next >> Part 7: Adding a Method to the Control
